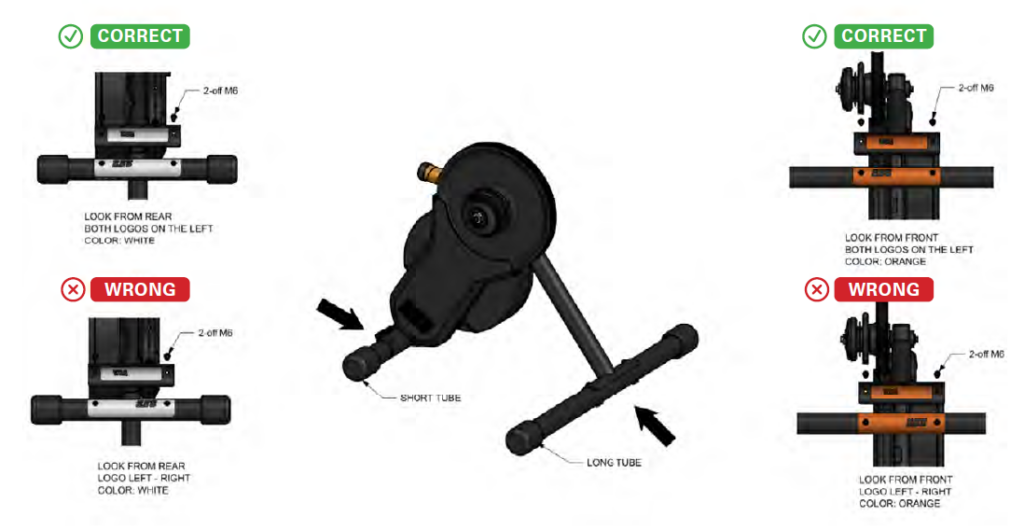

This is the first of four instructional videos to guide you through getting set up on your VICTORY. In this video, we’ll go over what’s inside your box and how to set up your VICTORY Smart Trainer.
This second instructional video is for when you’ve already assembled your VICTORY and are ready to mount your bike. Let’s get started.
Now that your bike is mounted on your VICTORY trainer, let’s get you connected!
If you want to train using apps other than Zwift, you’ll need to remove the Zwift Cog and install the correct cassette for your trainer. Fortunately, it’s pretty simple.
For full details of compatibility with other products, visit www.jetblackcycling.com/support.
Your VICTORY is compatible with all training applications including FulGaz, MyWhoosh, Rouvy, Sufferfest and TrainerRoad.
Your VICTORY includes a pre-installed Zwift Cog, compatible with most bikes and removes the inconvenience of changing cassettes. If you want to use a different cassette or freehub, you will need a cassette lockring tool and a chain whip to change to a compatible cassette for your bike. Your local bike shop can assist you.
The Victory is Cassette compatible. If you are wanting to install a Cassette, you will first need to remove the Z COG. First remove the drive side Axle adaptor holding the Zwift Cog in position. Then using a CHAIN WHIP and Cassette tool, remove the locking Ring. This will enable you to slide the Zwift cog of the Free hub supplied. You can now slide your 11 speed or 12 speed cassettes onto the Victory’s freehub body. If using a 10 speed, please use the spacer provided. For SRAM XDR users, you will need to purchase a XDR Freehub body from our website or provider. VICTORY does not support Campagnolo.
Before attaching a cassette, follow the installation instructions provided with your new cassette and use the recommended cassette spacer, if required. Secure the cassette tightly on the freehub. Once in place, re-install the drive side adapter that you removed in the first step and torque the adapter up to
6Nm. For more tips, visit www.jetblackcycling.com/support
The law of the State, or Country, in which it was purchased, may govern the specific warranty for your JetBlack Cycling product.
Terms of Manufacturer’s Warranty:
This warranty applies only to the original owner of a JetBlack Cycling product and is not transferable to subsequent owners.
For any warranty claim to be considered, the product must be brought into the retailer or online store the product was originally purchased from.
The product must be presented completely together with the original, dated sales receipt, or other appropriate proof of purchase. (Make sure you keep your receipt in a safe place.) The retailer will then communicate with JetBlack Cycling or their distributor regarding the warranty claim. The contact
details for the retailer of your product will be set out on your receipt.
In addition to Australian Law for Australian customers regarding Consumer Guarantees, JetBlack products, are warranted by JetBlack Cycling Pty Ltd (“JetBlack”), against manufacturing defects in materials and/or workmanship for 12 months from proof of purchase date, by the original owner.
To the extent permissible by law, JetBlack Cycling excludes all representations or warranties not expressly set out in these terms. To the extent permissible by law, JetBlack’s liability for breach of any warranty set out in these terms or any warranty which JetBlack Cycling is not entitled to exclude is
limited to, at the option of JetBlack Cycling the:
This warranty shall cease and JetBlack shall thereafter in no circumstances be liable under the terms of this warranty if the workmanship is repaired, altered, or overhauled without the JetBlack’s consent.
JetBlack Cycling products are not warranted for – e.g. (i) failure to properly maintain any Goods; or (ii) failure to follow any instructions or guidelines provided; or (iii) any use of any Goods otherwise than for any application specified; or (iv) the continued use of any Goods after any defect becomes
apparent or would have become apparent to a reasonably prudent operator or user; or (v) fair wear and tear, any accidents or misuse; or (vi) abuse; or (vii) neglect; or (viii) improper repair; or (ix) alteration, modification; or (x) an accident; (xi) or other abnormal, excessive or improper use.
All labour charges for warranty service, including the transfer of products and/or any installation of new components, are the responsibility of the product’s’ owner. Due to product evolution and obsolescence, some components may not be available for older models. For warranty claims, JetBlack Cycling will review the product and consider appropriate actions. This may include repair of defects or, replace any defective product with the same or most similar product available at our discretion in line with these terms and Australian Consumer Law.
To enquire about or claim on your warranty – email [email protected] Please see our returns and warranty policy here: www.jetblackcycling.com/support/warranty
CONTACT JETBLACK
For more information or support on VICTORY:
jetblackcycling.com/support
JetBlack Products 31 Waker Street South Windsor NSW, Australia.
Email: [email protected]
This USER GUIDE is also available at www.jetblackcycling.com/support
CONTACT ZWIFT
For more information or support on Zwift Cog and Click or the app:
zwift.com/support
Your JetBlack VICTORY comes Zwift Ready straight out of the box, complete with the Zwift Cog preinstalled.
It is compatible with 8-12 speed gears and features a Zwift CLICK controller for seamless gear changes in the virtual cycling world.
If removing Zwift Cog & replacing with preferred cassette, skip ahead to pages 11 &12 for removing the Zwift Cog to install Cassette.
WHAT KIND OF REAR WHEEL AXLE DO YOU HAVE?
The VICTORY trainer supports 130 & 135mm Quick Release configurations in addition to 142 & 148mm Thru Axle configurations.
Please follow the instructions below for your wheel type:

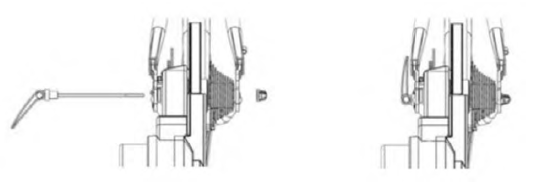

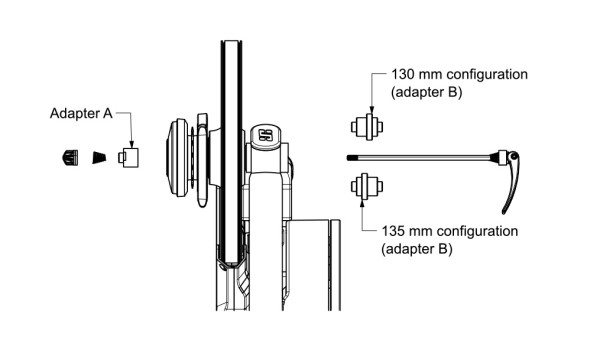

For quick release, Insert the quick release skewer that comes in the box.
Do this by unscrewing the end with the nut and taking one of the springs off. This is important and bears repeating. Take one of the springs off. To secure, feed the quick release skewer through the trainer from the non-drive side (opposite side to the Zwift Cog), reinstall the spring, thread the nut on, do not tighten the skewer just yet

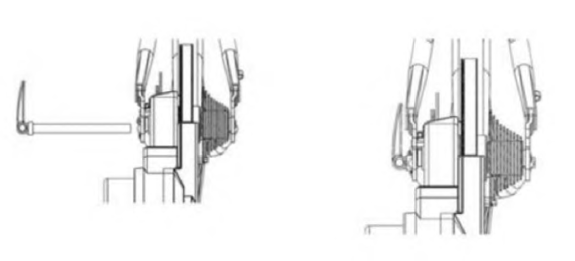

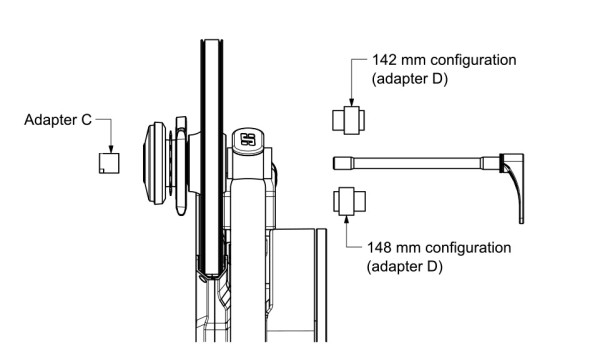

For thru axle, starting from the non-drive (opposite side to where the Zwift cog is) guide your thru axle adapter through the cog and trainer. Then, take the wrench and tighten the drive side adapter to “finger tight”. Do not over tighten this adapter because you could damage the bearings. If you have a torque wrench, the drive side adapter should be tightened to six newton-meters.
Line up the chain with the Zwift cog and lower your bike onto the cog as if you were lowering onto your wheel.
Give it a good jiggle to ensure the bike is secure. Turn the pedals. If you hear a ticking noise or any skipping from the chain, shift up or down to align your chain with theZwift Cog.

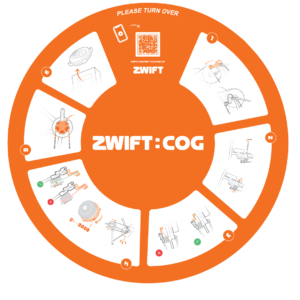

Follow the round instructions in the box.
Dial the Zwift Cog (two-part donut shaped dial) grey dial with numbers on it, clockwise to adjust the positioning of the chain. The dial is calibrated from 0-9 and can be continually rotated clockwise until you achieve the right position. You are trying to get your chain line as straight as possible.
If you are not able to turn your pedals, or your Zwift Cog or cassette is not moving when your bike is mounted on the VICTORY, it is your quick release skewer or drive side adapter is too tight. If there is a clicking noise, adjust your gears slightly and or turn the grey dial some more.
You will need to remove the Zwift Cog and replace with the correct cassette for your bike before attaching your bike to the trainer.
If you want to remove your Zwift Cog to use another riding application:

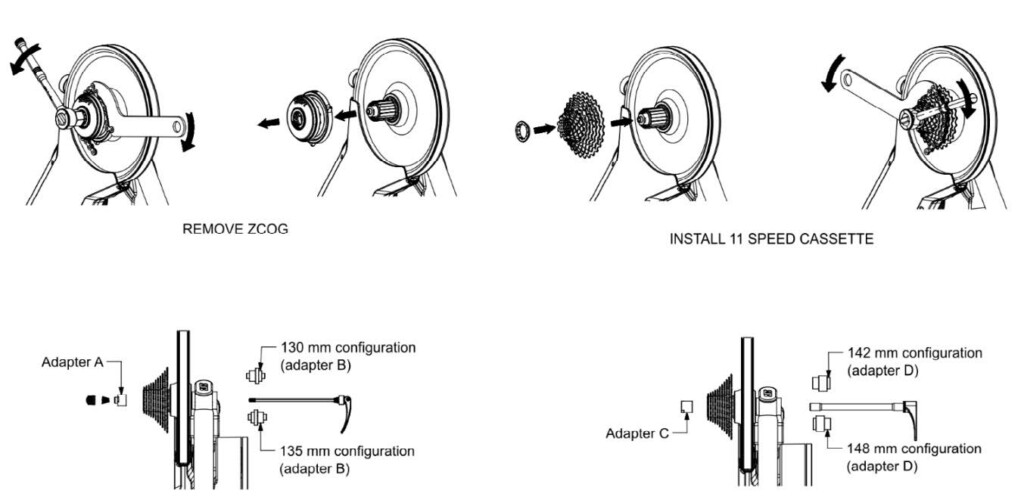

REMOVE ZWIFT COG AND INSTALL AN 11-SPEED CASSETTE

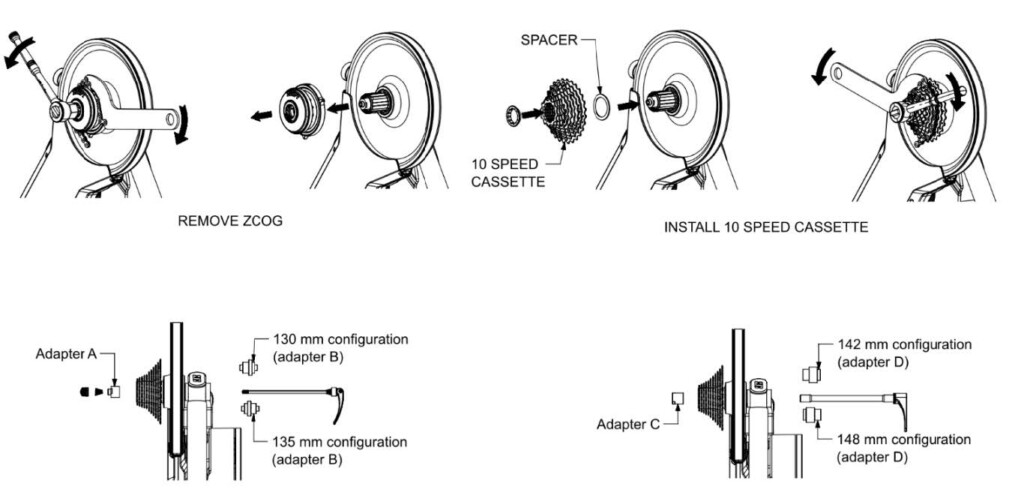

REMOVE ZWIFT COG AND INSTALL A 10-SPEED CASSETTE

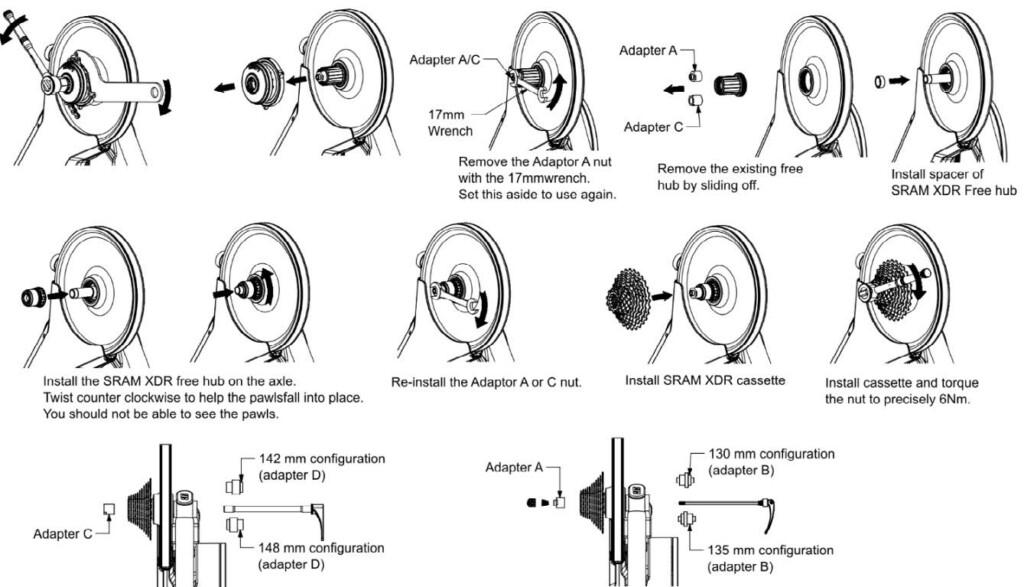

REMOVE ZWIFT COG AND INSTALL A SRAM XDR CASSETTE

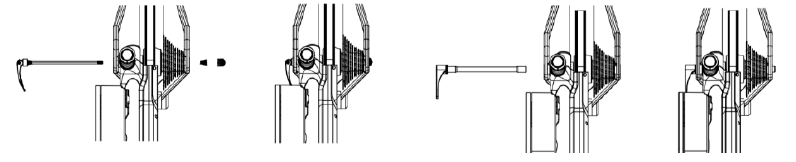

Shift the chain on your bicycle to the smallest sprocket on the cassette and then remove the rear wheel. Align the bicycle’s chain with the smallest sprocket on the trainer cassette, then mount the bicycle frame onto the VICTORY axle.
Securely tighten the QR axle as you would on your bicycle wheel.

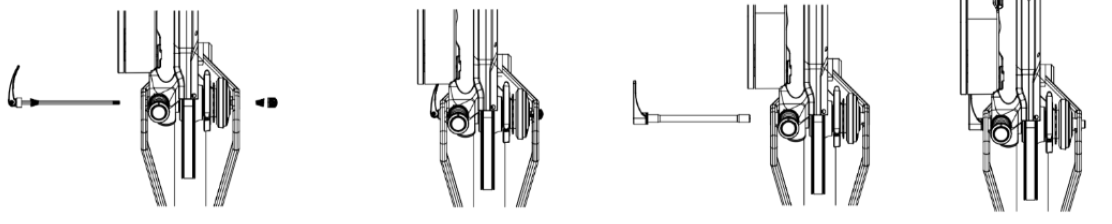

Please follow the same mounting instructions above, then refer to the images below for mounting a thru axle frame to the VICTORY Smart Trainer.

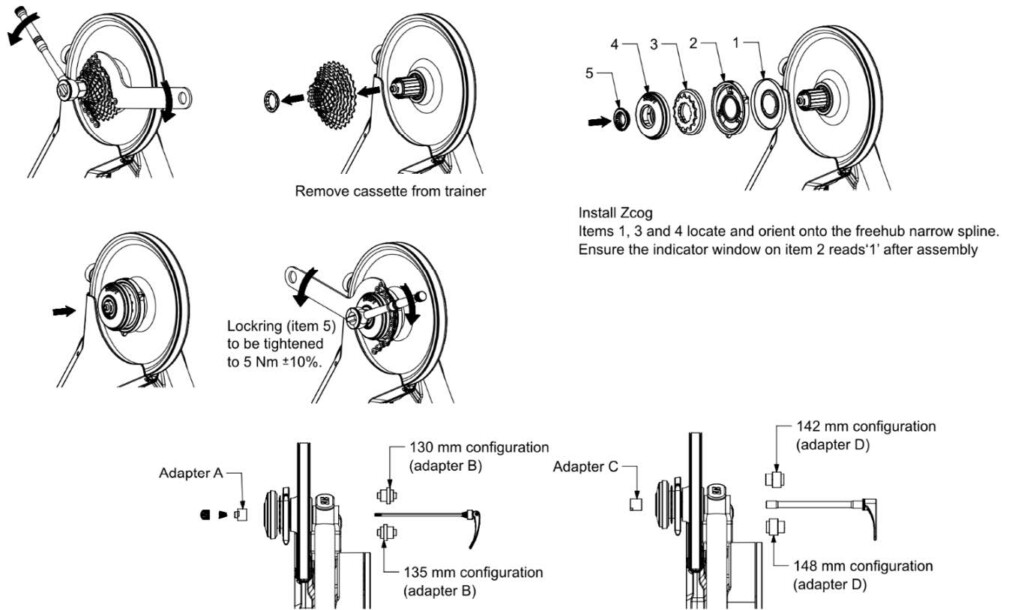

REMOVE CASSETTE AND INSTALL ZWIFT COG
Plug your power supply into the electrical port on your VICTORY. You will need power for your VICTORY, so plug it into a wall outlet.
The status LED on your VICTORY will cycle through red/blue/green colours before entering a pairing state. The LED will flash blue when it is ready to pair to Zwift or preferred app and will be solid blue once connected.
CONNECTIVITY LIGHT (LED) DISPLAY USING BLUETOOTH
(Once connected to your power source)
TIP: The JetBlack VICTORY will only connect to one Bluetooth device at a time. Please ensure App is properly closed before trying to connect to a different training App.
CONNECTIVITY LIGHT (LED) DISPLAY USING ANT+
(Once connected to your power source)
ANT+ is at a “ON” status, App will show connection. Blue light will continue to blink.
LED DISPLAY WHEN PERFORMING A FIRMWARE UPDATE
*DO NOT disconnect trainer or your device while the firmware is updating.
LED DISPLAY WHEN CONNECTED VIA WI-FI.
Flashing Green to Solid Green when connect via Wi-Fi. Once established, The Victory will automatically attach to Wi-Fi.
Now that your bike is mounted on your Victory Trainer, let’s get you connected. Grab the power cable included with your Victory, feed it underneath the rear leg of the trainer, and plug it into the power port. When the trainer turns on, the LED lights will cycle through red, blue, and green before entering pairing mode. This process takes less than 5 seconds.
When the LED flashes blue, your Victory is ready to pair with the JetBlack Training App or any other platform. If you haven’t already, download the JetBlack Trainer App from your phone’s app store.
To connect your Victory Trainer:
The app will search for available trainers. When your Victory is recognized, select it. The LED will turn solid blue once connected.
Next, use the JetBlack app to connect accessories like your heart rate monitor or Smart Turn Block to the Victory Trainer.
Your Victory includes a Bluetooth Device Bridge, allowing you to pair Bluetooth-compatible heart rate monitors and the JetBlack Smart Turn steering device, freeing up Bluetooth connections on your Apple TV.
Pro Tip: Make sure to fully close the JetBlack Trainer app before attempting to connect to Zwift or any other training app.
Note for Apple TV users: Apple TV only supports two Bluetooth connections, plus the remote. If you try to connect more than two devices, Zwift will show a “device limit” message. You can use the JetBlack Bluetooth Bridge or connect multiple devices, like Zwift Play controllers and other accessories, using the Zwift Companion app.
If you are getting inconsistent readings or ride feel when using BLE on Zwift or App.
For best ride feel and accuracy it is recommended to be connected to only ONE controllable device when training on VICTORY. For example if you are connected to the JetBlack App and also then connect to Zwift without closing the JetBlack App, your trainer will be DOUBLE CONNECTED and receiving signals from both apps to control the trainer. This can result in confused cadence and power readings and a lumpy, inconsistent ride feel under foot.
If you are getting ANT+ Dropouts.
UPDATING VICTORY FIRMWARE
Before your first ride, check and update your Victory firmware:
Note: Firmware updates can only be done over Bluetooth.
CONNECTING TO WIFI
Your Victory is Wi-Fi enabled, offering a more stable connection with better signal coverage. Here’s how to connect:
Pro Tip: To use Wi-Fi on Zwift, select the Wi-Fi icon for Power Source, Resistance, and Cadence.
Your VICTORY firmware can be updated within the JetBlack Cycling app.
You can download the app on IOS and Android Devices, via the App Store and Google Play. Once you have set up your trainer, and powered it on, check for a firmware update and update if available.
Leave your device near the VICTORY until the update is complete. For more information on how to update your firmware, visit www.jetblackcycling.com/support
To start using your VICTORY with Zwift Cog & Click, download and install the Zwift app on a supported device.
There are two Zwift apps – one for the subscription & virtual riding platform. And the other is a companion app, which allows you to chat and interact with other riders, find events and much more.
Once your trainer is turned on and you have downloaded the Zwift app, follow the instructions on the screen to connect via Bluetooth® or ANT+.
Your Victory comes equipped with a USB-C connection. USB-C will enable users in troublesome WiFi areas to connect the Victory directly to their PC, MAC, Smart Phones and enabled tablets.
Direct connection can eliminate platform to hardware drop-outs caused by Bluetooth, ANT+ and WiFi inefficiencies. Check with your training platform if they support USB protocols. While USB-C connectivity is not fully enabled on many platforms today, future proofing Victory is important to JetBlack and our users. It also enables JetBlack to continue development with products that will utilize this technology in the near future.
If Click Not presenting on Zwift screen.
When Connecting to Zwift either via BLE or WiFi and the Click or Controllable trainer does not present as options on the Zwift App Connection Screen.
Follow these steps.
If you continue to have connection issues with Zwift Click, please reach out to Zwift Support https://www.zwift.com/contact-us

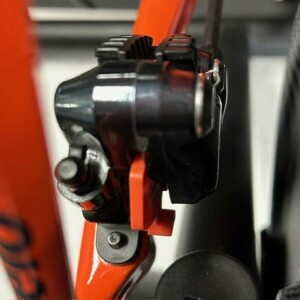

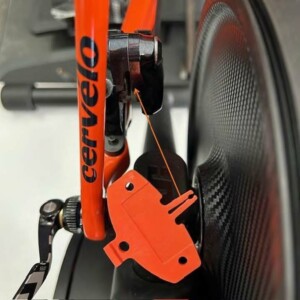

We have supplied a Disk Brake Block and recommend you install this into the rear brake calliper prior to riding your bike on the trainer. This keeps the brake pad spaced correctly to ensure your brakes are aligned when you reinstall the rear wheel.
The VICTORY disk generates a small amount of heat during operation, which is normal. Allow it to cool down after use to prevent overheating.
Lower your bike frame onto the VICTORY while pushing the derailleur backward and aligning the chain with the Zwift Cog before tightening the skewer.
Please only use the provided power brick or an after-market power block that meets the following specifications to avoid damage to your trainer.
Power Brick Specifications:
INPUT: 100-240V~50/60Hz 1.5A
OUTPUT: +19.0V-4.74A, 90.06W
We do not recommend the use of E-Bikes on the Victory trainer. For those E-Bikes with torque sensor mounted on the rear wheel, using the bike without the wheel mounted could potentially affect the relationship between the torque sensor and control system. If you choose to use your E-Bike on the Victory trainer, consulting your manufacturer beforehand for further guidance.
At any stage during your ride, when you stop pedalling for 3 secs or more the trainer will automatically calibrate itself. We see advantages at performing an auto calibration when your unit is warmed up (after 10mins of riding, or when convenient)
No longer do you need to exit the session to perform a manual spin down within the App, the VICTORY will automatically do it for you. We do suggest every few rides to warm the trainer up, when up to speed stop pedalling until the trainer comes to a complete stop helping the trainer to complete a gold standard Auto calibration.
Advantages
It is recommended to conduct a Spin Down calibration after unboxing your trainer before initial use, after relocating or transporting the trainer, and with the changing seasons to account for ambient temperature fluctuations.
